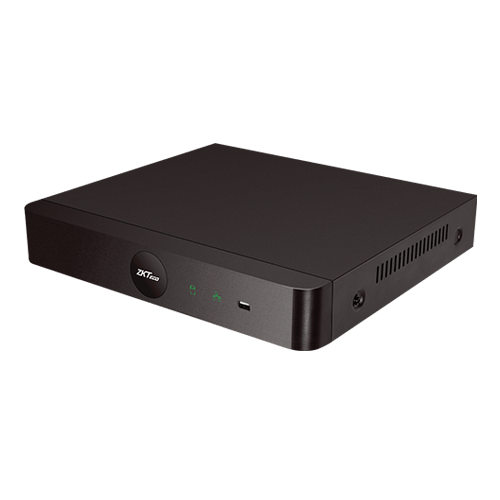

ZK 16CH DVR Z8416XF-CL

Product Details

•H.265/H.264 decoding
•Support AHD/TVI/CVI/CVBS/IP video input
•Hybrid extra IP channels input up to 8 channels
•Support 16-channel 5MP Lite resolution preview and playback
•HDMI output up to 1080P high definition
•Intelligent video analytics functions
•Support multiple web browsers login
•P2P cloud service supported
•ONVIF Profile S compatible

Model	Z8416XF-CL
System
Main Processor	Multi-core Embedded Processor
Operation System	Embedded LINUX
Video and Audio
Video Input	16CH BNC
Two-way Talk	Support
Audio Compression	G.711a
Audio Bitrate	64Kbps
AHD Input	5MP, 4MP, 1080P, 720P
TVI Input	5MP, 4MP, 1080P, 720P
CVI Input	4MP, 1080P, 720P
CVBS Input	Support
IPC Input	24CH 5MP
Hybrid Mode	16CH (AHD/TVI/CVI/CVBS)+8CH (IP)
Live View
Display Split	1/4/6/8/9/12/16/24
Resolution	5MP Lite/1080P/1080P Lite/720P(1280*720)
Live View Capability	24CH
Recording
Video Compression	H.265
Recording Resolution	5MP Lite/4MP Lite/1080P/720P/960H/D1
Encoding Capability	16CH 5MP Lite@12fps;4MP Lite@15fps; 1080P@15fps; 720P/960H/D1@25fps
Incoming Bandwidth	64Mbps
Bitrate	Main Stream: 11Kbps ~ 4096Kbps Sub Stream: 50Kbps ~ 700Kbps
Record Mode	Manual/External Alarm/ Motion/Scheduled/IVA Alarm
Record Interval	1-120min (default: 60min),Pre-record: 1~30 sec, Post-record: 10~300 sec
Playback and Backup
Playback Channel	1/4/8/9/16
Search Mode	IVA Search/Time/Motion Detection Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen
Playback Function	Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen
Backup Mode	USB Device/Network Remote
IVA Alarm
Local IVA Functions	Target Counting, Object Abandon/Missing, Intrusion, Tripwire, Human Detection
Regular Detection	Motion Detection/Video Tampering/Video Loss
AI Search	Support search target video by multiple intelligent conditions
Network
Network Protocol	TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P, ONVIF
Max. Online User	5
Web Browser	IE / Safari / Google Chrome / Firefox
Operation System	Windows
Management Platform	AntarVis 2.0 / ZKBioAccess IVS / ZKBioSecurity V5000
Mobile Application	AntarView Pro (iOS & Android)
P2P Cloud Service	Support
Interoperability	ONVIF Profile S, SDK
Storage & Auxiliary Interface
SATA Ports	2 SATA (up to 8TB each port)
eSATA	N/A
Raid 0/1/5/6/10	N/A
HDMI	1*HDMI (1080P)
VGA	1*VGA (1080P)
Network Interface	1 RJ-45 Port (10/100/1000Mbps)
USB	2*USB 2.0
Audio Input/Output	4 input / 1 output
Audio over Coaxial (AoC)	Support
Alarm Input/Output	N/A
RS-485	N/A
POS	Support
Power
Power Supply	DC 12V/3A
Power Consumption	Max. 36W without HDD
General
Casing	1.5U
Working Temperature	-10°C ~ 55°C
Working Humidity	10% ~ 90%
Dimensions (LWH)	243 * 324 * 52 (mm)
Net Weight	1.3kg
Gross Weight	1.8kg
