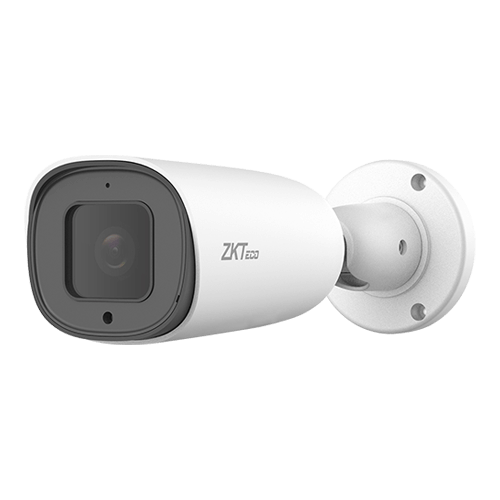

ZK 4MP IP Bullet Camera BL-854N38A-E3

Product Details

· 1/2.8” Sony STARVIS CMOS sensor
· H.265+ dual-stream encoding
· High-quality optical lens: 3.6-10.8mm
· 50m IR effective range
· Built-in PoE
· An embedded face detection algorithm
· Intelligent video analytics available
· Multiple web browsers supported
· Remote viewing with mobile application or VMS
· Lightning protection up to 6KV
· IP67 metal casing
· Support Audio/Alarm/RS485/SD card slot

Camera
Model	BL-854N38A-E3
Image Sensor	1/2.8” Sony STARVIS CMOS
Effective Pixels	2592*1520
Min. Illumination	Color: 0.01Lux@F1.7 (AGC ON) B/W: 0.001Lux@F1.7 (AGC ON)
Flash / DDR	128Mb / 1Gb
IR LED No.	2
IR Distance	50m
S/N Ratio	>52dB
Lens
Lens Type	Motorized
Mount Type	Board-in
Focal Length	3.6mm-10.8mm
Aperture	F1.7 - F3.3
FOV	29.8°~93.5°
Optical Zoom	3X
Video
Compression	H.265+, H.265, H.264
Resolution	4MP (2592 x 1520) / 3MP(2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720)
Bitrate Control	CBR / VBR
Bitrate	1024Kbps ~ 4Mbps
Multi-Streaming	Main Stream: 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps
	Sub Stream: D1@25fps / VGA@25fps / CIF@25fps
	Third Stream: N/A
Motion Detection	Support
Digital Zoom	Support
Audio Compression	G7.11u
Privacy Mask	5 areas
WDR	TWDR
Day / Night	Support
White Balance	Support
Defog	N/A
Noise Reduction	2D/3D DNR
Mirror/Flip	Support
Corridor Mode	Support
HLC	Support
BLC	Support
ROI	4 areas
Anti-flicker	Support
IVA
Intelligent Video	Face Detection / Line Crossing / Area Detection / Target Count / Object Left / Lost / VQD / Video Tampering
Face Detection
Face Templates	N/A
Face Detected Per Frame	30
Detected Face Size	80x80 ~ 300x300 Pixels
Face Quality Filtering	Support
Detection Area	User-defined
Capture Response	≤1s
Network
Protocol	TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Interoperability	ONVIF Profile S, SDK, API
Max. Online Users	3
Web Browser	IE / Firefox / Chrome / Safari
Management Software (VMS)	AntarVis 2.0 / ZKBioSecurity IVS / BioAccess IVS
Operation System	Windows
Mobile APP	AntarView Pro
P2P Cloud Service	Support
Note: Video streaming is not available for Firefox / Chrome / Safari
Interface
Ethernet	1 RJ-45 port (10/100Mbps)
Audio I/O	1/1
Alarm I/O	2/1
RS485	Support
Reset Button	Support
Micro-SD Slot	Support (Max 128GB)
ANR	Support
USB	N/A
General
Power Supply	PoE (IEEE802.3af ), DC 12V±10%
Power Consumption	<3W
Ingress Protection	IP67
Dimensions	Φ102 * 93.3 (mm)
Working Temperature	-30°C ~ 60°C
Working Humidity	10% ~ 90%
Net Weight	0.50kg
Gross Weight	0.70kg
