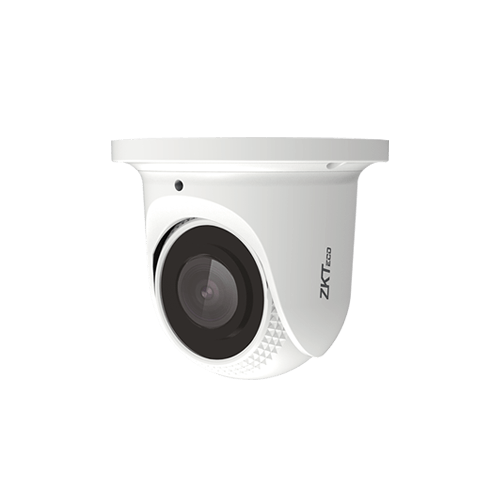

ZK 4MP IP Eyeball Camera ES-854N22C

Product Details

· 1/3” 4MP CMOS sensor
· H.265+ dual-stream encoding
· High-quality optical lens: 3.6mm
· IR effective range 30m
· Built-in PoE
· An embedded face detection algorithm
· White/Black-list alarm deployment
· Intelligent video analytics function supported
· Multiple web browsers supported
· Remote viewing with mobile application or VMS
· Lightning protection up to 6KV
· Metal casing compliance with IP67 standard

Camera
Model	ES-854N22C
Image Sensor	1/3” CMOS
Effective Pixels	2592*1520
Min. Illumination	Color: 0.01Lux@F2.0 (AGC ON) B/W: 0.001Lux@F2.0 (AGC ON)
Flash / DDR	1Gb / 2Gb
IR LED No.	2 (Smart IR)
IR Distance	30m
S/N Ratio	>52dB
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	3.6mm
Aperture	F2.0
FOV	85°
Optical Zoom	N/A
Video
Compression	H.265+, H.265, H.264
Resolution	4MP (2592 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720)
Bitrate Control	CBR / VBR
Bitrate	1024Kbps ~ 4Mbps
Multi-Streaming	Main Stream: 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps Sub Stream: D1@25fps / VGA@25fps / CIF@25fps Third Stream: N/A
Motion Detection	Support
Digital Zoom	Support
Audio Compression	G7.11u
Privacy Mask	4 areas
WDR	DWDR
Day / Night	Support
White Balance	Support
Defog	N/A
Noise Reduction	2D/3D DNR
Mirror/Flip	Support
Corridor Mode	Support
HLC	Support
BLC	Support
ROI	4 areas
Anti-flicker	Support
IVA
Intelligent Video	Face Detection / Line Crossing / Area Detection / Target Count / Object Left / Lost/VQD/ Video Tampering
Face Detection
Face Templates	N/A
Face Detected Per Frame	30
Detected Face Size	80x80 ~ 300x300 Pixels
Face Quality Filtering	Support
Detection Area	User-defined
Capture Response	≤1s
Network
Protocol	TCTCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Interoperability	ONVIF Profile S, SDK, API
Max. Online Users	5
Web Browser	IE / Firefox / Chrome / Safari
Management Software (VMS)	AntarVis 2.0 / ZKBioSecurity IVS / BioAccess IVS
Operation System	Windows
Mobile APP	AntarView Pro
P2P Cloud Service	Support
Note:Video streaming is not available for Firefox / Chrome / Safari
Interface
Ethernet	1 RJ-45 port (10/100Mbps)
Audio I/O	N/A
Alarm I/O	N/A
RS485	N/A
Reset Button	N/A
Micro-SD Slot	N/A
ANR	N/A
USB	N/A
General
Power Supply	PoE (IEEE802.3af), DC 12V±10%
Power Consumption	<3W
Ingress Protection	IP67
Dimensions	Φ107 * 107 (mm)
Working Temperature	-30°C ~ 60°C
Working Humidity	10% ~ 90%
Net Weight	0.38kg
Gross Weight	0.48kg
