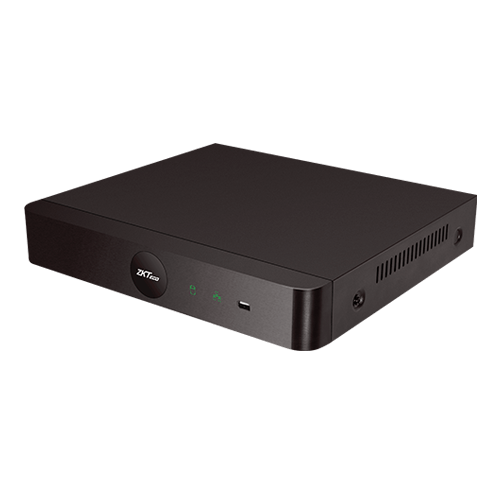

ZK 8CH 5MP Non-POE NVR Z8508NER

Product Details

System
Processor	Multi-core Embedded Processor
Operation System	Embedded Linux
IVA Alarm
Local IVA Functions	Target Counting, Object Detection, Intrusion, Tripwire
Regular Detection	Motion Detection/Video Tampering/Video Loss
I/O port and Storage
Network Interface	1 RJ-45 port (10/100Mbps)
USB	2*USB 2.0
HDMI	1*1080P HDMI
VGA	1*VGA
Alarm Input	N/A
Alarm Output	N/A
HDD	1 SATA, up to 8TB capacity for each HDD
RAID	N/A
Playback and Backup
Playback Channel	4
Search Mode	IVA Search/Time/Motion Detection
Playback Function	Play, Stop, Play forward, Play backward, 30 seconds forward, 30 seconds backward, Fast play, Slow play, Single frame play, Hide/Show the time bar, Backup, Snapshot, Full screen

Backup Mode	USB device/Network
Video/Audio
Max. IPC Input		8
Audio Compression	G.711a
Two-way Talk	N/A
Recording
Video Compression	H.265+/H.265/H.264+/H.264
Recording Resolution	5MP/3MP/1080P/960P/720P
Incoming Bandwidth	40Mbps
Bitrate	16K-8Mbps
Record Mode	Manual/External Alarm/Motion/Scheduled/IVA Alarm
Network
Network Protocol	TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P
Max. Online User	5
Mobile App	Antarview Pro
Interoperability	Onvif Profile S, SDK
Power
Power supply	DC 48V1.5A	DC 48V2.5A
Consumption	≤15W(Without HDD)
General
Working Temperature	-10℃~+55℃
Working Humidity	10~90%
Dimensions	255mm210mm43mm
Net Weight	2.5KG
Gross Weight	3KG

ZKTeco Z8000NER-P series could deliver up to 5MP resolution excellent image over advanced H.265+ decoding. It's the ideal
consideration for the balance of quality, performance and budget.
